BEIER™ HIGH PERFORMANCE CABLES FOR

Stanley E Tools

Replacement Cables for STANLEY part numbers:

20C1000XX / 20C1001XX / 20C1034XX

Benefit now from optimized cable performance and effective cost reduction.

In comparison to conventional DC Tool Cables, our products stand out with three crucial advantages:

three-times higher product life

improved ergonomics

much more affordable

BEIER™ High Performance Replacement Cables are available in the following versions:

BEIER™ Regular

for Stanley E

ST - 20C1000 XX / R

BEIER™ Swivel

for Stanley E

ST - 20C1000 XX / S

BEIER™ 90° Swivel

for Stanley E

ST - 20C1000 XX / 90S

BEIER™ 120° Swivel

for Stanley E

ST - 20C1000 XX / 120S

BEIER™ Swivel Technology

Patent Pending

+/- 170° twisting capability

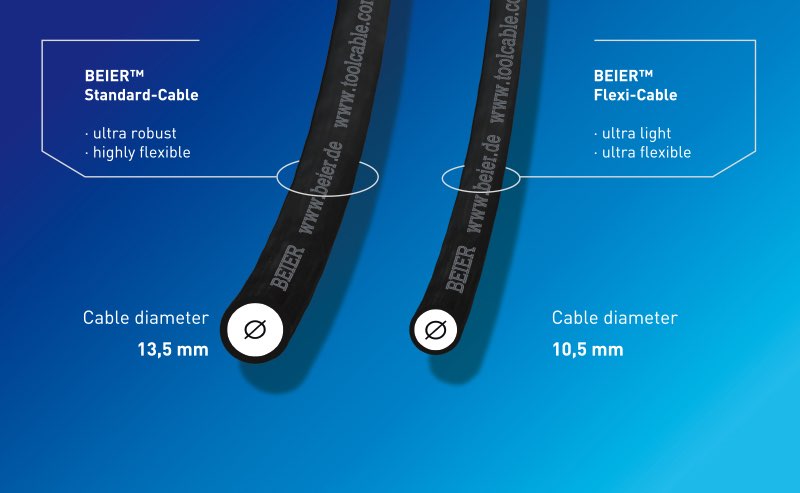

left: BEIER™ Standard Cable

Cable diameter 13.5 mm

right: BEIER™ Flexi Cable

ultra light & flexible

Cable diameter 10.5 mm

BEIER™ REPLACEMENT-VERSIONS:
Please see all available BEIER™ cable versions on the examplary basis of a cable with the length of 7 meters.
We have all common lengths on stock and can supply any special lengths on short notice.

Example for BEIER™ Article-No.-Structure

BEIER™ Item Number

Version

Description

ST - 20C1000 07 / R

Regular

Straight, non-rotatable

ST - 20C1000 07 / S

Swivel

Straight, +/- 170° rotatable

ST - 20C1000 07 / 90S

90° Swivel

90° angled, +/- 170° rotatable

ST - 20C1000 07 / 120S

120° Swivel

120° angled, +/- 170° rotatable

ST - 20C1034 07 / RF

Regular Flexi

Straight, non-rotatable, Flexi Cable

ST - 20C1034 07 / SF

Swivel Flexi

Straight, +/- 170° rotatable, Flexi Cable

ST - 20C1034 07 / 90SF

90° Swivel Flexi

90° angled, +/- 170° rotatable, Flexi Cable

ST - 20C1034 07 / 120SF

120° Swivel Flexi

120° angled, +/- 170° rotatable, Flexi Cable

Your advantages at a glance:

Features & Benefits

Better performing than any OEM cable - yet longer lasting, more cost-efficient and essentially more sustainable than a battery tool:

Optimized cable design
Improved product life
Improved ergonomics
Swivel Cables for unrestricted movement
Flexi Cables for ultimate operator comfort
Improved safety through multiple-shielding
Sustainable: long lasting & repeatedly repairable

Extension of the maintenance intervals
Cheaper prices
Delivery times: ultra fast & flexible
Less procurement expenses
Less storage costs
Lowered production downtimes
Repair instead of expensive new purchase

High Performance Cables mean the most economic solution within the field of DC Assembly Tools:

Unrivalled product life at cheapest prices, offering ultimate operator comfort thanks to our rotative Swivel Connectors and our ultra-light Flexi Cables. In contrast to battery tools, the combination of corded tools and BEIER™ High Performance Cables is unrivalled when it comes to sustainability, as it allows many years of maintenance-free operations thanks to the optimized cable design. In the event of mechanical damage, our cables can be easily serviced at very economical pricing for repeated long-term operations free of maintenance.

TECHNOLOGIES TO YOUR ADVANTAGE: The SWIVEL Cable

There are applications in which the tool needs to be twisted in different directions. When twisting the tool, the cable will disturb the operator’s freedom of movement as well as the continuous rotation will affect the lifetime of the cable.

We have developed our patented Swivel Technology to cope with this difficulty:

The Swivel Cable is equipped with a rotative tool connector, which absorbs the rotation of a connected tool in a turning radius of

+/- 170 degrees. This enables to operator to twist the tool without perceiving the resistance of a non-rotative cable.

Benefits at a glance:

+/- 170° Twisting capability meaning maximum freedom of movement
Ergonomical: reduced stress for operator and material
Diversity to meet all requirements: Swivel Cables are available with three different connector
housings: Straight ( Version Code: / S ), 90° Angle ( / 90S ) and 120° Angle ( / 120S )

TECHNOLOGIES TO YOUR ADVANTAGE: The FLEXI Cable

Flexi Cables were developed especially for applications, in which flexibility and low weight are crucial. Thanks to the optimized design with halved wire diameters, a Flexi Cable is a product with outstanding operator-friendliness. A cable comparable to a skipping rope.

Flexi Cables are barely perceptible while operating, at the same time offering you the decisive advantage of long term maintenance-free operations.

Benefits at a glance:

Light as a feather for ultimate operator comfort
Ultra flexible for maximum freedom of movement
Sustainable: minimized weight and less maintenance efforts compared to battery driven tools
Lowest overall maintenance costs: BEIER™ round cable designed for maximized maintenance-free product life

Cost Savings

Cost savings through improved performance at more affordable prices:

On average, BEIER™ High Performance Replacement Cables reach a product life of up to three-times higher than OEM cables.

At the same time, our cables are normally much more affordable than comparable OEM cables.

PDF product brochure:

Stanley E

BEIER_product-brochure_HPC+Repair_Stanle

Adobe Acrobat Document 2.0 MB

Download

Direct Inquiry

Additional Information:

High Performance Replacement Cable - former BEIER™ / GORE Part Numbers:

Until 2014 BEIER™ High Performance Replacement Cables for Stanley E were available under the following Article Numbers:

Replacement Cable Version: Regular
· GSC-10-23879-03 · GSC-10-23879-05 · GSC-10-23879-07 · GSC-10-23879-10 · GSC-10-23879-15

Replacement Cable Version: Swivel
· GSC-10-23664-03 · GSC-10-23664-05 · GSC-10-23664-07 · GSC-10-23664-10 · GSC-10-23664-15

Replacement Cable Version: 90° Swivel
· GSC-10-24063-03 · GSC-10-24063-05 · GSC-10-24063-07 · GSC-10-24063-10 · GSC-10-24063-15

Replacement Cable Version: Regular Flexi
· GSC-10-26007-03 · GSC-10-26007-05 · GSC-10-26007-07 · GSC-10-26007-10

Replacement Cable Version: Swivel Flexi
· GSC-10-26009-03 · GSC-10-26009-05 · GSC-10-26009-07 · GSC-10-26009-10

Replacement Cable Version: 90° Swivel Flexi
· GSC-10-26008-03 · GSC-10-26008-05 · GSC-10-26008-07 · GSC-10-26008-10

STANLEY Replaceable Original Cables

With BEIER™ High Performance Cables for STANLEY E Nutrunners you can replace the following STANLEY Part Numbers:

E Tool Cables

20C100001

OEM tool cable for E Series DC Tools with Stanley Part Number 20C100001 and cable length 1 m.

20C100003

OEM tool cable for E Series DC Tools with Stanley Part Number 20C100003 and cable length 3 m.

20C100007

OEM tool cable for E Series DC Tools with Stanley Part Number 20C100007 and cable length 7 m.

20C100010

OEM tool cable for E Series DC Tools with Stanley Part Number 20C100010 and cable length 10 m.

20C100101

OEM tool cable for E Series DC Tools with Stanley Part Number 20C100101 and cable length 1 m.

20C100103

OEM tool cable for E Series DC Tools with Stanley Part Number 20C100103 and cable length 3 m.

20C100107

OEM tool cable for E Series DC Tools with Stanley Part Number 20C100107 and cable length 7 m.

20C103401

OEM tool cable for E Series DC Tools with Stanley Part Number 20C103401 and cable length 1 m.

20C103403

OEM tool cable for E Series DC Tools with Stanley Part Number 20C103403 and cable length 3 m.

20C103407

OEM tool cable for E Series DC Tools with Stanley Part Number 20C103407 and cable length 7 m.

20C103410

OEM tool cable for E Series DC Tools with Stanley Part Number 20C103410 and cable length 10 m.

STANLEY Compatible DC Nutrunners

BEIER™ High Performance Cables for E Tools are 100% compatible to STANLEY DC Nutrunners / Part Numbers:

Pistol Straight:
· E02PB · E23PB-8 · E23PB · E33PB · E34PB1 · E35PB2 · E35PB4 · E02PB-2 · E02PB-3 · E02PB-5 · E23PB-8 · E23PB-17 · E23PB-21 · E23PB-31 · E33PB-32 · E33PB-40 · E34PB1-60 · E34PB1-74 · E34PB1-100 · E35PB2-155 · E35PB4-271 · E35PB4-340 · E33PC13-30

Lever Straight:
· E23LB-8 · E23LB · E33LB · E34LB1 · E44LB1 · E45LB2 · E55LB2E55LB3 · E55LB4 · E55LB5 · E55LB5 · E23LB-16 · E23LB-21 · E23LB-31 · E33LB-32 · E33LB-40 · E34LB1-60 · E34LB1-74 · E34LB1-100 · E44LB1-66 · E44LB1-100 · E45LB2-160 · E45LB2-250 · E55LB2-127 · E55LB2-200 · E55LB2-250 · E55LB3-322 · E55LB4-471 · E55LB4-623 · E55LB4-800 · E55LB5-1023 · E55LB5-1637 · E55LB5-2005

Motor Straight:
· E23MB-8 · E23MB · E33MB · E34MB1 · E44MB1 · E45MB2 · E55MB2 · E55MB3 · E55MB4 · E55MB5 · E23MB-16 · E23MB-21 · E23MB-31 · E33MB-32 · E33MB-40 · E34MB1-60 · E34MB1-74 · E34MB1-100 · E44MB1-66 · E44MB1-100 · E45MB2-160 · E45MB2-250 · E55MB2-127 · E55MB2-200 · E55MB2-250 · E55MB3-322 · E55MB4-471 · E55MB4-623 · E55MB5-1023 · E55MB5-1637 · E55MB5-2005

Lever Angle:
· E23LA13-11 · E23LA14 · E33LA18-46 · E33LA19 · E34/44LA19-70 · E34LA22 · E44LA22 · E45LA22 · E55LA26 · E55LA32 · E23LA14-21 · E23LA14-31 · E33LA14-33 · E33LA19-48 · E33LA19-60 · E34LA19-70 · E34LA22-101 · E34LA22-115 · E44LA19-70 · E44LA22-101 · E44LA22-120 · E45LA26-150 · E45LA26-201 · E43LA19-60 · E54LA22-120 · E55LA26-100 · E55LA26-167 · E55LA26-221 · E55LA32-337 · E55LA32-401

Lever Flush Angle:
· E23LA13-11 · E23LA14 · E33LA18-46 · E33LA19 · E34/44LA19-70 · E34LA22 · E44LA22 · E45LA26 · E55LA26 · E55LA32 · E23LA14-21 · E23LA14-31 · E33LA14-33 · E33LA19-48 · E33LA19-60 · E34LA19-70 · E34LA22-101 · E34LA22-115 · E44LA19-70 · E44LA22-101 · E44LA22-120 · E45LA26-150 · E45LA26-201 · E55LA26-100 · E55LA26-167 · E55LA26-221 · E55LA32-337 · E55LA32-401 · E33MA18F0-46 · E33MA19F0-60 · E34MA19-70 · E44MA19-70 · E34MA22-101 · E34MA22-115 · E44MA22-101 · E44MA22-120 · E45MA26-150 · E45MA26-201 · E55MA26-100 · E55MA26-221 · E55MA32-337 · E55MA32-401

Motor Angle:
· E33MA18F0-46 · E33MA19F0-60 · E34/44MA19-70 · E34MA22 · E44MA22 · E45MA26 · E55MA26 · E55MA32

Lever Crowfoot:
· E23LC69-15 · E33LC69-27 · E23LC246-22 · E33LC246-38 · E23LC13-18 · E33LC13-30 · E23LC35-16 · E33LC35-31 · E34LC29-45 · E34LC10-49 · E44LC10-88 · E44LC31-102 · E45LC21-216 · E23LC106-16 · E23LC69-15 · E23LC246-22 · E23LC13-18 · E33LC13-30 · E33LC29-35

Lever Tubenut:
· E23LT346 · E23LT74 · E23LT264 · E34LT23-41 · E34LT99 · E44LT20-102 · E23LT346-14 · E33LT346-25 · E23LT252-13 · E33LT252-22 · E23LT74-14 · E33LT74-30 · E23LT264-22 · E33LT264-44 · E34LT99-46 · E34LT99-62

Lever Hold & Drive:
· E23/33LH18V1 · E34/44LN22V1 · E34/44LH22V1 · E45LN26V1 · E55LN26V1 · E45LH26V1 · E55LH26V1 · E55LH32V1 · E23/33LH18V2 · E34/44LN22V2 · E34/44LH22V2 · E45LH26V2 · E55LH26V2 · E55LH32V2 · E23LH18V1-35 · E33LH18V1-46 · E23LH18V2-35 · E33LH18V2-46 · E34LH22V1-110 · E34LH22V1-66 · E34LN22V1-110 · E34LN22V1-66 · E34LH22V2-110 · E34LH22V2-66 · E44LH22V1-110 · E44LH22V1-66 · E44LN22V1-110 · E44LN22V1-66 · E44LH22V2-110 · E44LH22V2-66 · E45LH26V1-143 · E45LH26V1-191 · E45LN26V1-143 · E45LN26V1-191 · E45LH26V2-143 · E45LH26V2-191 · E55LH26V1-210 · E55LH26V1-95 · E55LN26V1-210 · E55LN26V1-95 · E55LH26V2-210 · E55LH26V2-95 · E55LH32V1-320 · E55LH32V1-380 · E55LH32V2-320 · E55LH32V2-380

Motors Straight Retractable:
· E23MBF1-8 · E23MBF1 · E33MBF1 · E23MBF1-F · E33MBF1-F · E34MB1F1 · E44MB1F1 · E45MB2F1 · E55MB2F1 · E45MB3F1 · E55MB3F1 · E55MB3F1-322 · E55MB4F1 · E55MB5F1-1023 · E55MB5F1 · E23MBF2-8 · E23MBF2 · E33MBF2 · E23MBF2-8F · E23MBF2-F · E33MBF2-F · E34MB1F2 · E44MB1F2 · E45MB2F2 · E55MB2F2 · E45MB3F2 · E55MB3F2 · E55MB3F2-322 · E55MB4F2 · E55MB5F2-1023 · E55MB5F2 · E23MBF1-21 · E23MBF1-31 · E33MBF1-32 · E33MBF1-40 · E23MBF2-8 · E23MBF2-21 · E23MBF2-31 · E33MBF2-32 · E33MBF2-40 · E23MBF1-21F · E23MBF1-31F · E33MBF1-32F · E33MBF1-40F · E23MBF2-8F · E23MBF2-21F · E23MBF2-31F · E33MBF2-32F · E33MBF2-40F · E34MB1F1-60 · E34MB1F1-74 · E34MB1F1-100 · E44MB1F1-66 · E44MB1F1-100 · E34MB1F2-60 · E34MB1F2-74 · E34MB1F2-100 · E44MB1F2-66 · E44MB1F2-100 · E45MB2F1-160 · E55MB2F1-127 · E55MB2F1-200 · E45MB2F2-160 · E55MB2F2-127 · E55MB2F2-200 · E45MB3F1-250 · E55MB3F1-250 · E55MB3F1-322 · E45MB3F2-250 · E55MB3F2-250 · E55MB3F2-322 · E55MB4F1-471 · E55MB4F1-623 · E55MB5F1-1637 · E55MB5F1-2005 · E55MB4F2-471 · E55MB4F2-623 · E55MB5F2-1023 · E55MB5F2-1637

Motors Offset Retractable:
· E23MDF1-7 · E23MDF1 · E33MDF1 · E23MDF1-7F · E23MDF1-F · E33MDF1-F · E34MD1F1 · E44MD1F1 · E45MD2F1-144 · E55MD2F1 · E45MD3F1 · E55MD3F1 · E55MD3F1-290 · E23MDF2-7 · E23MDF2 · E33MDF2 · E23MDF2-7F · E23MDF2-F · E55MDF2-F · E34MD1F2 · E44MD1F2 · E45MD2F2-144 · E55MD2F2 · E45MD3F2 · E55MD3F2 · E55MD3F2-290 · E23MDF1-19 · E23MDF1-27 · E33MDF1-29 · E33MDF1-36 · E23MDF2-19 · E23MDF2-27 · E33MDF2-29 · E33MDF2-36 · E23MDF1-19F · E23MDF1-27F · E33MDF1-29F · E33MDF1-36F · E23MDF2-19F · E23MDF2-27F · E33MDF2-29F · E33MDF2-36F · E34MD1F1-54 · E34MD1F1-67 · E34MD1F1-90 · E44MD1F1-59 · E44MD1F1-90 · E34MD1F2-54 · E34MD1F2-67 · E34MD1F2-90 · E44MD1F2-59 · E44MD1F2-90 · E55MD2F1-114 · E55MD2F1-180 · E55MD2F2-114 · E55MD2F2-180 · E45MD3F1-144 · E45MD3F1-225 · E55MD3F1-180 · E55MD3F1-225 · E45MD3F2-144 · E45MD3F2-225 · E55MD3F2-180 · E55MD3F2-225 · E33MA18F1-46 · E33MA19F1-60 · E34MA19F1-70 · E44MA19F1-70 · E34MA22F1-115 · E44MA22F1-120 · E33MA18F2-46 · E33MA19F2-60 · E34MA19F2-70 · E44MA19F2-70 · E34MA22F2-115 · E44MA22F2-120

Motors Angle Retractable:
· E33MA18F1-46 · E33MA19F1-60 · E34MA19F1-70 · E44MA19F1-70 · E34MA22F1-116 · E44MA22F1-115 · E45MA26F1 · E55MA26F1 · E55MA32F1-401 · E33MA18F2-46 · E33MA19F2-60 · E34MA19F2-70 · E44MA19F2-70 · E34MA22F2-116 · E44MA22F2-115 · E45MA26F2 · E55MA26F2 · E55MA32F2-401 · E45 MA26F1-150 · E45MA26F1-201 · E55MA26F1-100 · E55MA26F1-167 · E55MA26F1-221 · E45MA26F2-150 · E45MA26F2-201 · E55MA26F2-100 · E55MA26F2-167 · E55MA26F2-221 · E55MA32F1-337 · E55MA32F1-337 · E55MA32F1-401 · E55MA32F2-337

STANLEY compatible Controllers

BEIER™ High Performance Cables for STANLEY E Tools are 100% compatible to STANLEY Controllers / Part Numbers:

Single Spindle Alpha Controller:

· QA1001-XDV · QA1001-XDX · QA1001-XPV · QA1001-XPX · QA1001-XXV · QA1001-XXX · QA1001-MDV · QA1001-MDX · QA1001-MPV · QA1001-MPX · QA1001-MXV · QA1001-MXX
· Q1001EXX · Q1001EDX · Q1001EPX · Q1001EDV · Q1001EPV · Q1001EXV · Q1001XDX · Q1001XPX · Q1001XDV · Q1001XPV · Q1001XXV

One or Two Spindle Gamma Controller:

· Q4001N · Q4002N · Q4001 · Q4002 · Q4001P · Q4002P
