BEIER™ HIGH PERFORMANCE CABLES FOR

Replacement Cables for ESTIC part numbers:

Benefit now from optimized cable performance and effective cost reduction.

In comparison to conventional DC Tool Cables, our products stand out with three crucial advantages:

BEIER™ High Performance Replacement Cables are available in the following versions:

BEIER™ REPLACEMENT-VERSIONS:
Please see all available BEIER™ cable versions on the examplary basis of a cable with the length of 5 meters.
We have all common lengths on stock and can supply any special lengths on short notice.

This Replacement Cable is also available in version 120° Swivel, as well as in Flexi-Version for all connector types on request.

There are applications in which the tool needs to be twisted in different directions. When twisting the tool, the cable will disturb the operator’s freedom of movement as well as the continuous rotation will affect the lifetime of the cable.

We have developed our patented Swivel Technology to cope with this difficulty:

The Swivel Cable is equipped with a rotative tool connector, which absorbs the rotation of a connected tool in a turning radius of

+/- 170 degrees. This enables to operator to twist the tool without perceiving the resistance of a non-rotative cable.

Benefits at a glance:

• +/- 170° Twisting capability meaning maximum freedom of movement
• Ergonomical: reduced stress for operator and material
• Diversity to meet all requirements: Swivel Cables are available with three different connector
  housings: Straight ( Version Code: / S ), 90° Angle ( / 90S ) and 120° Angle ( / 120S )

Flexi Cables were developed especially for applications, in which flexibility and low weight are crucial. Thanks to the optimized design with halved wire diameters, a Flexi Cable is a product with outstanding operator-friendliness. A cable comparable to a skipping rope.

Flexi Cables are barely perceptible while operating, at the same time offering you the decisive advantage of long term maintenance-free operations.

Benefits at a glance:

• Light as a feather for ultimate operator comfort
• Ultra flexible for maximum freedom of movement
• Sustainable: minimized weight and less maintenance efforts compared to battery driven tools
• Lowest overall maintenance costs: BEIER™ round cable designed for maximized maintenance-free product life

OUR REPAIR SERVICE COMPRISES:

• Complete control including high-voltage test
• Complete removal of the damaged cable area
• Tool Connector Upgrade with optimized BEIER™ housing and connector components
• BEIER™ Integrated Bending Protection: robust, high flexible and ergonomic
• High-voltage final test with logging of resistance values in the mΩ-range

You will receive the repaired tool cable with consideration for your individual needs normally within a few business days.

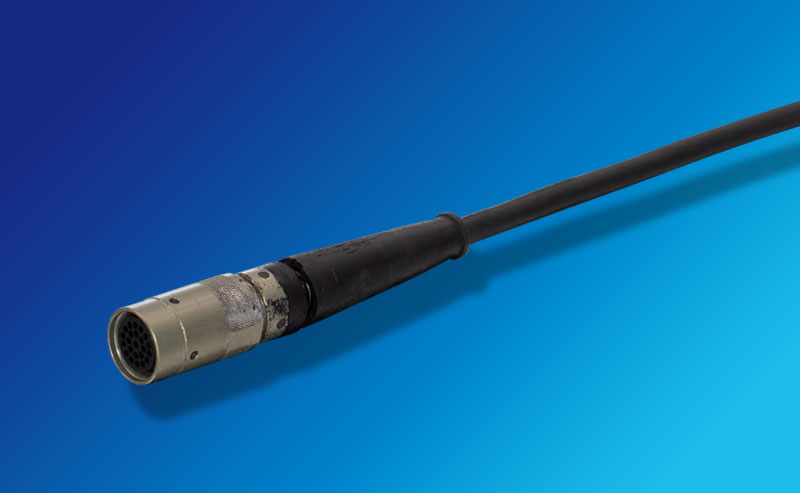

Damaged OEM Cable before repair  |  Cable Type: ESTIC EH2 EH2-CVSXX-SS

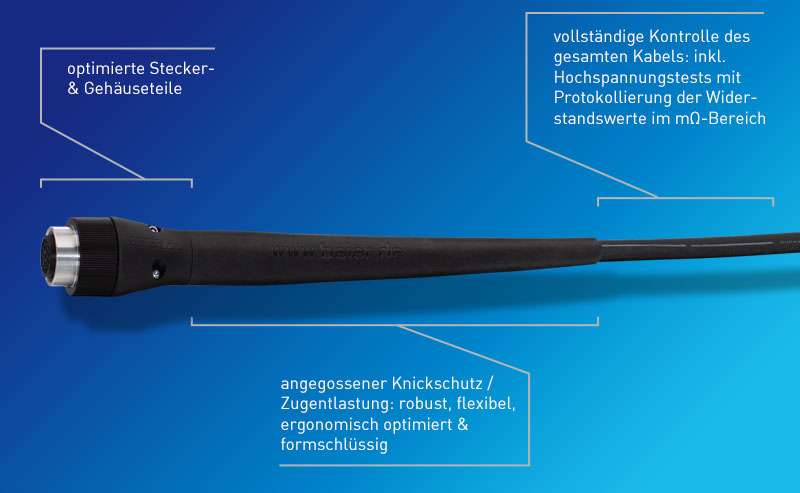

OEM Cable after repair: Features and benefits

Your advantages at a glance:

Better performing than any OEM cable - yet longer lasting, more cost-efficient and essentially more sustainable than a battery tool:

High Performance Cables mean the most economic solution within the field of DC Assembly Tools:

Unrivalled product life at cheapest prices, offering ultimate operator comfort thanks to our rotative Swivel Connectors and our ultra-light Flexi Cables. In contrast to battery tools, the combination of corded tools and BEIER™ High Performance Cables is unrivalled when it comes to sustainability, as it allows many years of maintenance-free operations thanks to the optimized cable design. In the event of mechanical damage, our cables can be easily serviced at very economical pricing for repeated long-term operations free of maintenance.

Your advantage:

With the BEIER™ Cable Repair Service you can save more than 65% of the new procurement price for OEM-Cables (depending on the cable type). At the same time we can increase the product life considerably thanks to our optimized Tool Connector and integrated bending protection.

Comparison of average price-performance ratio
