BEIER™ High Performance Original cables

for DC Tools from APEX TOOL GROUP (CLECO / COOPER)

CABLE TYPE: 18/48 90° Angle Swivel


APEX part number:

961252-XXX

BEIER™ Item Number:

AX-961252-XXX


High Performance Replacement Version for APEX basic quality part number:

961260-XXX, 301903-XM

Cable Type: BEIER™ 90° Swivel for 18/48 Series Tools

AX-961252-XXX

BEIER™ REPLACEMENT-VERSIONS:
Please see all available BEIER™ cable versions on the examplary basis lengths of 3, 6 and 10 meters.
All cable types can be realized as 120° Swivel version as well as in ultra light and flexible Flexi version.

Version connector tool side:

90° Swivel: Connector at 90° angle, +/- 170° rotatable


BEIER™ Item Number

APEX part number

Length


AX-961252-030

961252-030

  3 m


AX-961252-060

961252-060

  6 m


AX-961252-100

961252-100

10 m


Alternative available Cable Types for 18/48 DC Tools:

18/48 Regular

961250-XXX / 961250-XXX / 961259-XXX / 301866-XM

18/48 Swivel

961251-XXX / 961251-XXX / 301904-XM


Available BEIER™ Technologies:

TECHNOLOGIES TO YOUR ADVANTAGE: The SWIVEL Cable

There are applications in which the tool needs to be twisted in different directions. When twisting the tool, the cable will disturb the operator’s freedom of movement as well as the continuous rotation will affect the lifetime of the cable.



We have developed our patented Swivel Technology to cope with this difficulty:



The Swivel Cable is equipped with a rotative tool connector, which absorbs the rotation of a connected tool in a turning radius of

+/- 170 degrees. This enables to operator to twist the tool without perceiving the resistance of a non-rotative cable.



Benefits at a glance:

  • +/- 170° Twisting capability meaning maximum freedom of movement
  • Ergonomical: reduced stress for operator and material
  • Diversity to meet all requirements: Swivel Cables are available with three different connector
    housings: Straight ( Version Code: / S ), 90° Angle ( / 90S ) and 120° Angle ( / 120S )

TECHNOLOGIES TO YOUR ADVANTAGE: The FLEXI Cable

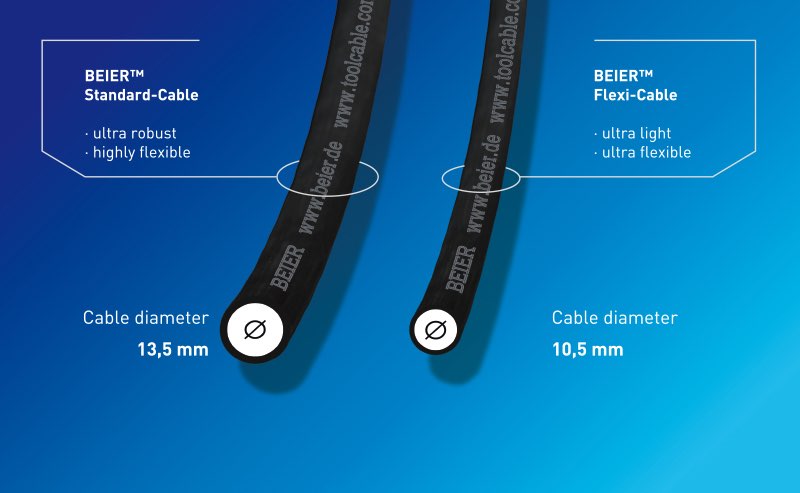

Flexi Cables were developed especially for applications, in which flexibility and low weight are crucial. Thanks to the optimized design with halved wire diameters, a Flexi Cable is a product with outstanding operator-friendliness. A cable comparable to a skipping rope.

Flexi Cables are barely perceptible while operating, at the same time offering you the decisive advantage of long term maintenance-free operations.



Benefits at a glance:

  • Light as a feather for ultimate operator comfort
  • Ultra flexible for maximum freedom of movement
  • Sustainable: minimized weight and less maintenance efforts compared to battery driven tools
  • Lowest overall maintenance costs: BEIER™ round cable designed for maximized maintenance-free product life

PDF product brochure:

Download
APEX 18/48 90° Angle Swivel
BEIER_product-brochure_HPC+Repair_APEX_1
Adobe Acrobat Document 1.7 MB
Download

Direct Inquiry

Note: Please fill out the fields marked with an asterisk.

Additional Information:

Standardized Cable Lenghts

APEX part number:



961252-010

High Performance version tool cable with APEX / CLECO part number 961252-010 and cable length 1 m.



961252-030

High Performance version tool cable with APEX / CLECO part number 961252-030 and cable length 3 m.



961252-040

High Performance version tool cable with APEX / CLECO part number 961252-040 and cable length 4 m.



961252-050

High Performance version tool cable with APEX / CLECO part number 961252-050 and cable length 5 m.



961252-060

High Performance version tool cable with APEX / CLECO part number 961252-060 and cable length 6 m.



961252-070

High Performance version tool cable with APEX / CLECO part number 961252-070 and cable length 7 m.



961252-080

High Performance version tool cable with APEX / CLECO part number 961252-080 and cable length 8 m.



961252-100

High Performance version tool cable with APEX / CLECO part number 961252-100 and cable length 10 m.



961252-120

High Performance version tool cable with APEX / CLECO part number 961252-120 and cable length 12 m.



961252-150

High Performance version tool cable with APEX / CLECO part number 961252-150 and cable length 15 m.





BEIER™ Item Number:



AX-961252-010

High Performance version tool cable with BEIER™ item number AX-961252-010 and cable length 1 m.



AX-961252-030

High Performance version tool cable with BEIER™ item number AX-961252-030 and cable length 3 m.



AX-961252-040

High Performance version tool cable with BEIER™ item number AX-961252-040 and cable length 4 m.



AX-961252-050

High Performance version tool cable with BEIER™ item number AX-961252-050 and cable length 5 m.



AX-961252-060

High Performance version tool cable with BEIER™ item number AX-961252-060 and cable length 6 m.



AX-961252-070

High Performance version tool cable with BEIER™ item number AX-961252-070 and cable length 7 m.



AX-961252-080

High Performance version tool cable with BEIER™ item number AX-961252-080 and cable length 8 m.



AX-961252-100

High Performance version tool cable with BEIER™ item number AX-961252-100 and cable length 10 m.



AX-961252-120

High Performance version tool cable with BEIER™ item number AX-961252-120 and cable length 12 m.



AX-961252-150

High Performance version tool cable with BEIER™ item number AX-961252-150 and cable length 15 m.





Old BEIER™ Item Number:



GSC-10-24763-01

High Performance version tool cable with BEIER™ item number GSC-10-24763-01 and cable length 1 m.



GSC-10-24763-03

High Performance version tool cable with BEIER™ item number GSC-10-24763-03 and cable length 3 m.



GSC-10-24763-04

High Performance version tool cable with BEIER™ item number GSC-10-24763-04 and cable length 4 m.



GSC-10-24763-05

High Performance version tool cable with BEIER™ item number GSC-10-24763-05 and cable length 5 m.



GSC-10-24763-06

High Performance version tool cable with BEIER™ item number GSC-10-24763-06 and cable length 6 m.



GSC-10-24763-07

High Performance version tool cable with BEIER™ item number GSC-10-24763-07 and cable length 7 m.



GSC-10-24763-08

High Performance version tool cable with BEIER™ item number GSC-10-24763-08 and cable length 8 m.



GSC-10-24763-10

High Performance version tool cable with BEIER™ item number GSC-10-24763-10 and cable length 10 m.



GSC-10-24763-12

High Performance version tool cable with BEIER™ item number GSC-10-24763-12 and cable length 12 m.



GSC-10-24763-15

High Performance version tool cable with BEIER™ item number GSC-10-24763-15 and cable length 15 m.





APEX basic quality part number:



961260-010

Tool cable basic quality with APEX / CLECO part number 961260-010 and cable length 1 m.



961260-030

Tool cable basic quality with APEX / CLECO part number 961260-030 and cable length 3 m.



961260-040

Tool cable basic quality with APEX / CLECO part number 961260-040 and cable length 4 m.



961260-050

Tool cable basic quality with APEX / CLECO part number 961260-050 and cable length 5 m.



961260-060

Tool cable basic quality with APEX / CLECO part number 961260-060 and cable length 6 m.



961260-070

Tool cable basic quality with APEX / CLECO part number 961260-070 and cable length 7 m.



961260-080

Tool cable basic quality with APEX / CLECO part number 961260-080 and cable length 8 m.



961260-100

Tool cable basic quality with APEX / CLECO part number 961260-100 and cable length 10 m.



961260-120

Tool cable basic quality with APEX / CLECO part number 961260-120 and cable length 12 m.



961260-150

Tool cable basic quality with APEX / CLECO part number 961260-150 and cable length 15 m.



301903-1M

Tool cable basic quality with APEX / CLECO part number 301903-1M and cable length 1 m.



301903-3M

Tool cable basic quality with APEX / CLECO part number 301903-3M and cable length 3 m.



301903-4M

Tool cable basic quality with APEX / CLECO part number 301903-4M and cable length 4 m.



301903-5M

Tool cable basic quality with APEX / CLECO part number 301903-5M and cable length 5 m.



301903-6M

Tool cable basic quality with APEX / CLECO part number 301903-6M and cable length 6 m.



301903-7M

Tool cable basic quality with APEX / CLECO part number 301903-7M and cable length 7 m.



301903-8M

Tool cable basic quality with APEX / CLECO part number 301903-8M and cable length 8 m.



301903-10M

Tool cable basic quality with APEX / CLECO part number 301903-10M and cable length 10 m.



301903-12M

Tool cable basic quality with APEX / CLECO part number 301903-12M and cable length 12 m.



301903-15M

Tool cable basic quality with APEX / CLECO part number 301903-15M and cable length 15 m.

APEX / CLECO / COOPER Compatible Nutrunners

BEIER™ High Performance Cables for 18/48 are 100% compatible to APEX / CLECO / COOPER DC Nutrunners / Part Numbers:



Right Angle Series:
· 18EAE08AL2 · 18EAE15AM3 · 18EAE22AM3 · 18EAE28AM3 · 48EAE15AL3 · 48EAE28AL3 · 48EAE41AM3 · 48EAE58AM3 · 48EAE58AM4 · 48EAE90AH4 · 48EAE105AH4 · 48EAE135MH4 · 48EAE175AX6 · 48EAE230AX6



Inline Non-Floating Series:
· 18ESE06Q · 18ESE06D2 · 18ESE12Q · 18ESE12D3 · 18ESE17Q · 18ESE17D3 · 18ESE22D3 · 18ESE31D3 · 48ESE12Q · 48ESE12D2 · 48ESE25D3 · 48ESE36D3 · 48ESE48D3 · 48ESE65D4 · 48ESE90D4 · 48ESE125D4 · 48ESE150D4



Pistol Grip Series:
· 18EPE06Q · 18EPE06D2 · 18EPE12Q · 18EPE12D3 · 18EPE17Q · 18EPE17D3 · 18EPE22D3 · 18EPE31D3 · 48EPE12Q · 48EPE12D2 · 48EPE25D3 · 48EPE36D3 · 48EPE48D3 · 48EPE65D4 · 48EPE90D4 · 48EPE125D4 · 48EPE150D4 · 48EPE200D6 (swing bar) · 48EPE500D6 (swing bar) · 48EPE1000D8 (swing bar)



Push-to-Start Series:
· 18EPE06QP · 18EPE06D3P · 18EPE12QP · 18EPE12D3P · 18EPE06QP · 18EPE06D3P · 18EPE12QP · 18EPE12D3P



Inline Floating Spindle Series:
· 18ESE06ZA · 18ESE12ZA · 18ESE17ZA · 48ESE12ZA · 48ESE271ZB · 48ESE361ZB · 48ESE602ZB · 48ESE702ZB · 48ESE802ZB · 48ESE1152ZB · 48ESE1502ZB · 48ESE1653ZB · 48ESE2503ZB



Hold & Drive Series:
· 48EAE53H · 48EAE75H · 48EAE110H · 48EAE135H · 48EAE230H



Flush Socket Series:
· 18EAE16F1 · 18EAE23F1 · 18EAE30F1 · 48EAE37F2 · 48EAE52F2 · 48EAE53F3 · 48EAE75F3 · 48EAE110F3 · 48EAE135F4 · 48EAE230F4



Tube Nut Series:
· 48ETE20T2 · 48ETE30T3 · 48ETE40T4



Crowfoot Series:
· 48ECE30C1



Right Angle Floating Spindle Series:
· 18EAE16S131 · 18EAE23S131 · 18EAE30S131 · 48EAE37S231 · 48EAE52S231 · 48EAE53S341 · 48EAE75S341 · 48EAE95S341 · 48EAE110S341 · 48EAE135S461 · 48EAE230S461



Right Angle Series:
· 18CAE08AL2 · 18CAE15AM3 · 18CAE22AM3 · 18CAE28AM3 · 48CAE15AL3 · 48CAE28AL3 · 48CAE41AM3 · 48CAE58AM3 · 48CAE58AM4 · 48CAE90AH4 · 48CAE105AH4 · 48CAE135MH4 · 48CAE175AX6 · 48CAE230AX6



Inline Non-Floating Series:
· 18CSE06Q · 18CSE06D2 · 18CSE12Q · 18CSE12D3 · 18CSE17Q · 18CSE17D3 · 18CSE22D3 · 18CSE31D3 · 48CSE12Q · 48CSE12D2 · 48CSE25D3 · 48CSE36D3 · 48CSE48D3 · 48CSE65D4 · 48CSE90D4 · 48CSE125D4 · 48CSE150D4



Pistol Grip Series:
· 18CPE06Q · 18CPE06D2 · 18CPE12Q · 18CPE12D3 · 18CPE17Q · 18CPE17D3 · 18CPE22D3 · 18CPE31D3 · 48CPE12Q · 48CPE12D2 · 48CPE25D3 · 48CPE36D3 · 48CPE48D3 · 48CPE65D4 · 48CPE90D4 · 48CPE125D4 · 48CPE150D4



Push-to-Start Series:
· 18CPE06QP · 18CPE06D3P · 18CPE12QP · 18CPE12D3P · 18CSE06QP · 18CSE06D3P · 18CSE12QP · 18CSE12D3P



Inline Floating Spindle Series:
· 18CSE06ZA · 18CSE12ZA · 18CSE17ZA · 48CSE12ZA · 48CSE271ZB · 48CSE361ZB · 48CSE602ZB · 48CSE702ZB · 48CSE802ZB · 48CSE1152ZB · 48CSE1502ZB · 48CSE1653ZB · 48CSE2503ZB



Hold & Drive Series:
· 48CAE53H · 48CAE75H · 48CAE110H · 48CAE135H · 48CAE230H



Flush Socket Series:
· 18CAE16F1 · 18CAE23F1 · 18CAE30F1 · 48CAE37F2 · 48CAE52F2 · 48CAE53F3 · 48CAE75F3 · 48CAE110F3 · 48CAE135F4 · 48CAE230F4



Tube Nut Series:
· 48CTE20T2 · 48CTE30T3 · 48CTE40T4



Right Angle Floating Spindle Series:
· 18CAE16S131 · 18CAE23S131 · 18CAE30S131 · 48CAE37S231 · 48CAE52S231 · 48CAE53S341 · 48CAE75S341 · 48CAE95S341 · 48CAE110S341 · 48CAE135S461 · 48CAE230S461



Crowfoot Series:
· 48CCE30C1
